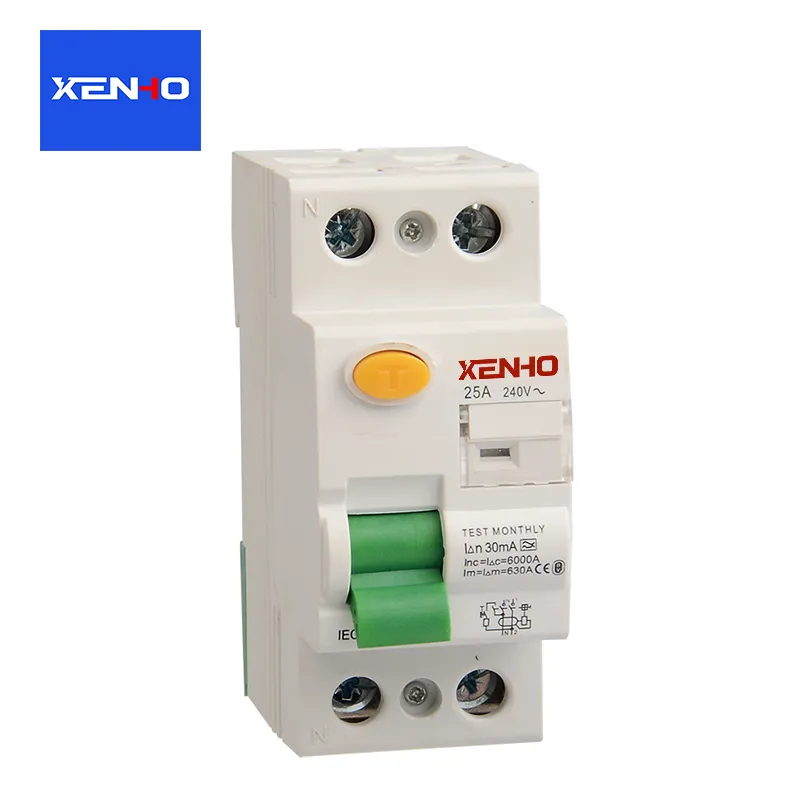

AC Type 2P RCCB

What is a AC Type 2P RCCB?

XENHO facctory’s AC Type 2P RCCB is a high-performance residual current circuit breaker designed to detect leakage current and disconnect power instantly before hazards occur. This AC Type 2P RCCB monitors the current balance between phase and neutral lines and trips automatically when leakage exceeds preset levels (such as 30mA or 100mA).

Widely used in residential, commercial, and industrial applications, the AC Type 2P RCCB provides essential protection against:

Electric shock risks

Electrical fire caused by leakage

Equipment damage due to insulation failure

Key Features

1. High Sensitivity Protection

Detects even minimal leakage currents for maximum safety

2. Fast Tripping Response

Millisecond-level disconnection to prevent accidents

3. Durable Mechanical Life

Over 100,000 operation cycles without performance degradation

4. Strong Environmental Adaptability

Operates reliably under high temperature, humidity, and EMI conditions

5. Premium Material Construction

Electro-galvanized steel (SECC/SPCC)

High-purity copper conductors (≥1.5mm thickness)

Zn-Ni coating with 500+ hours salt spray resistance

6.Flexible Customization

Supports OEM/ODM for current ratings, modules, and accessories

Product Specifications

Component Advantages

The core stamped components of the AC Type 2P RCCB are fabricated through a composite process utilizing high-quality electrolytic steel sheet (SECC) and high-strength cold-rolled steel sheet (SPCC). Specifically, the critical components within the conductive circuit are integrally stamped from copper strip (T2 temper) with a thickness of ≥1.5mm, thereby ensuring both high current-carrying capacity and structural stability.

The surfaces of the metal stamped parts undergo a dual treatment process consisting of zinc-nickel alloy plating (with a thickness of ≥8μm) followed by insulating powder coating. This treatment enables the components to withstand salt spray testing for over 500 hours, effectively protecting them against corrosion and oxidation in industrial environments. For precision transmission components—such as the tripping mechanism—high-elasticity spring steel (65Mn) is utilized and subjected to quenching and tempering treatments; this guarantees reliable mechanical operation for over 100,000 cycles without fatigue failure. Furthermore, the selection of all materials strictly complies with the RoHS environmental directive as well as the requirements of the IEC 60898-1 standard regarding temperature rise and mechanical strength.

Customization & Manufacturing Process

We offer personalized customization tailored to client requirements, covering rated current (32A–125A), pole configuration, and accessory modules—including auxiliary contacts, overvoltage protection units, and remote tripping devices. Our production process employs automated stamping, precision welding, and full-vacuum epoxy potting techniques, integrated with an intelligent online inspection system to ensure real-time monitoring of critical parameters. Prior to shipment, every AC Type 2P RCCB undergoes rigorous testing—including dielectric strength tests, leakage response time calibration, and mechanical life sampling—to guarantee consistency and reliability. Our products hold multiple certifications, such as UL, CE, and CCC, thereby meeting the market entry requirements of major global markets.

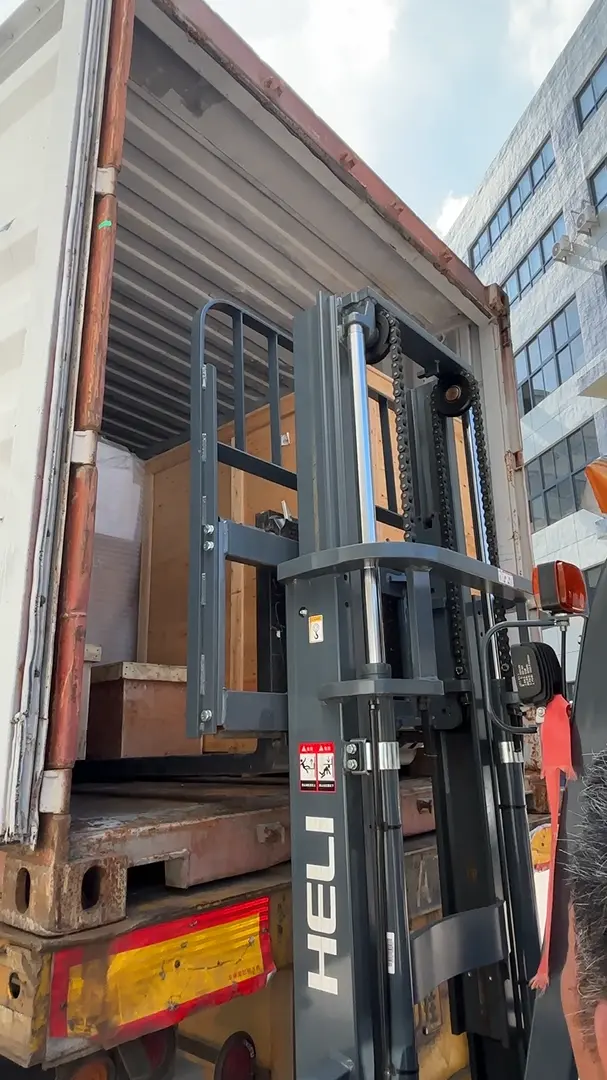

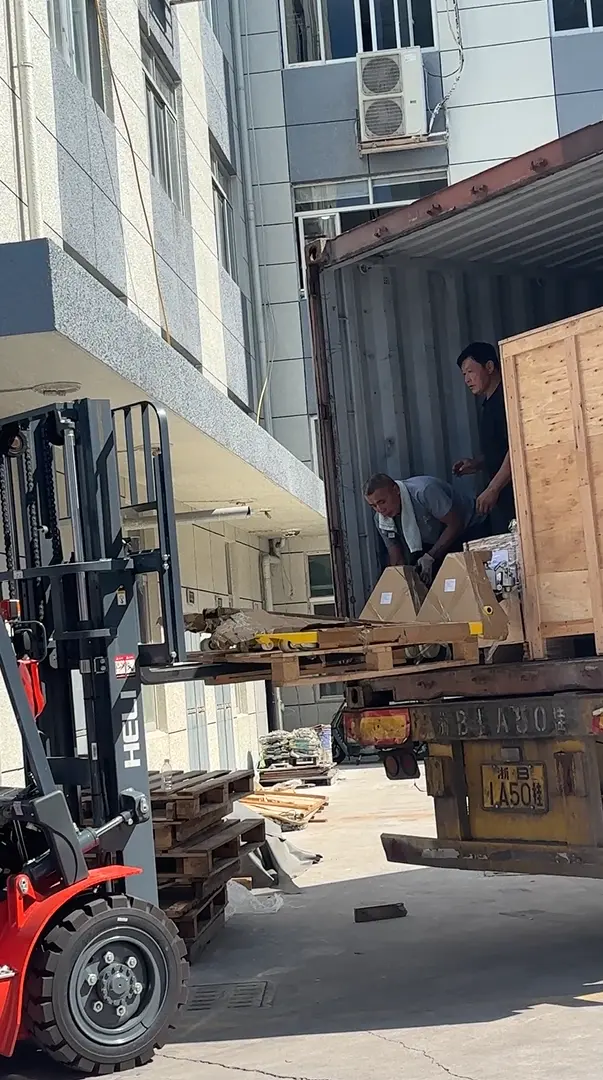

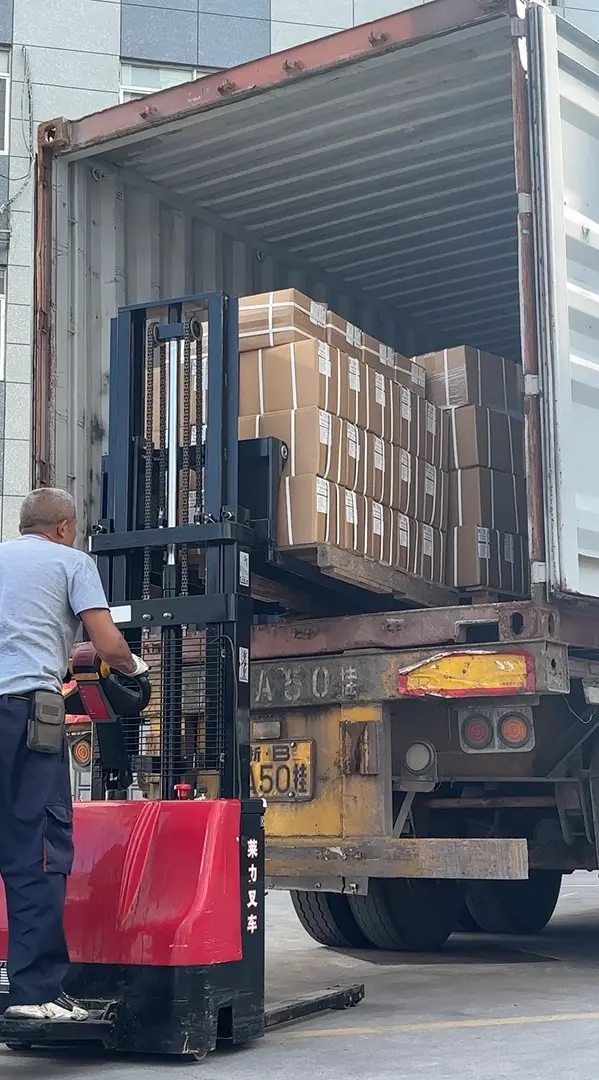

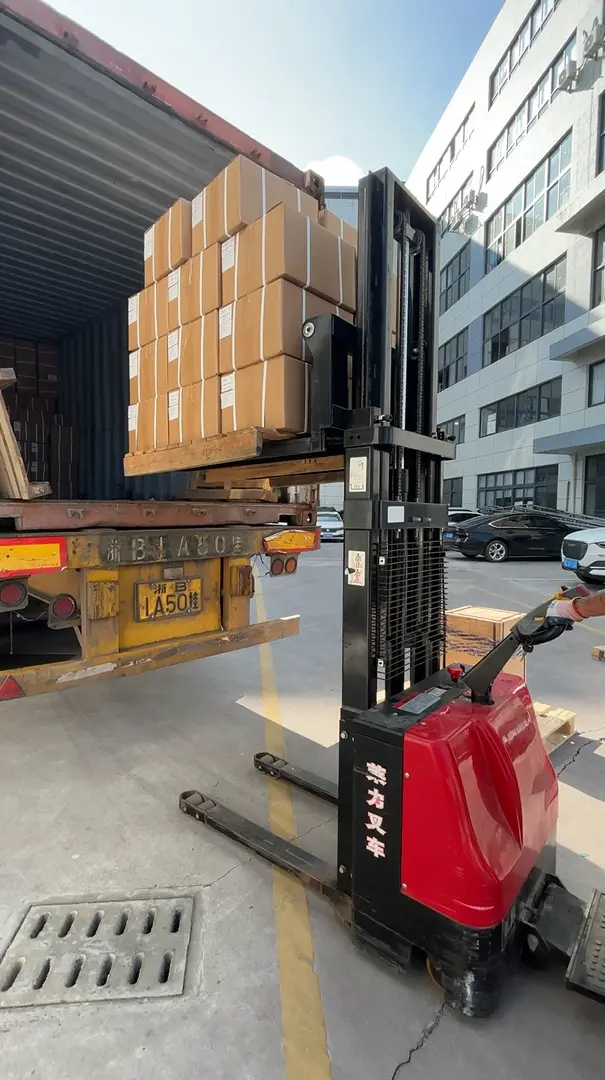

Loading and Shipping
