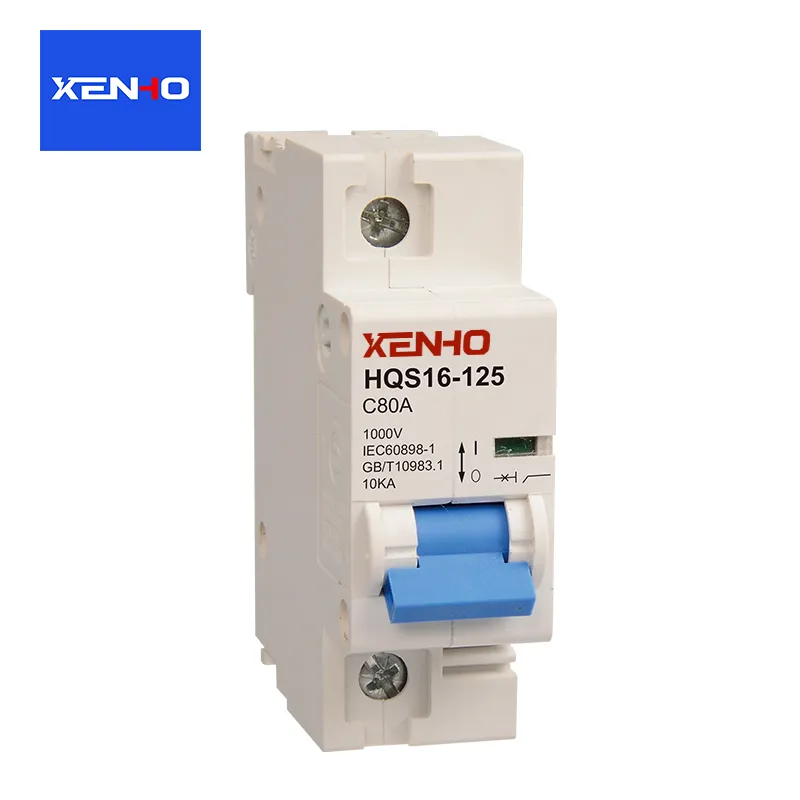

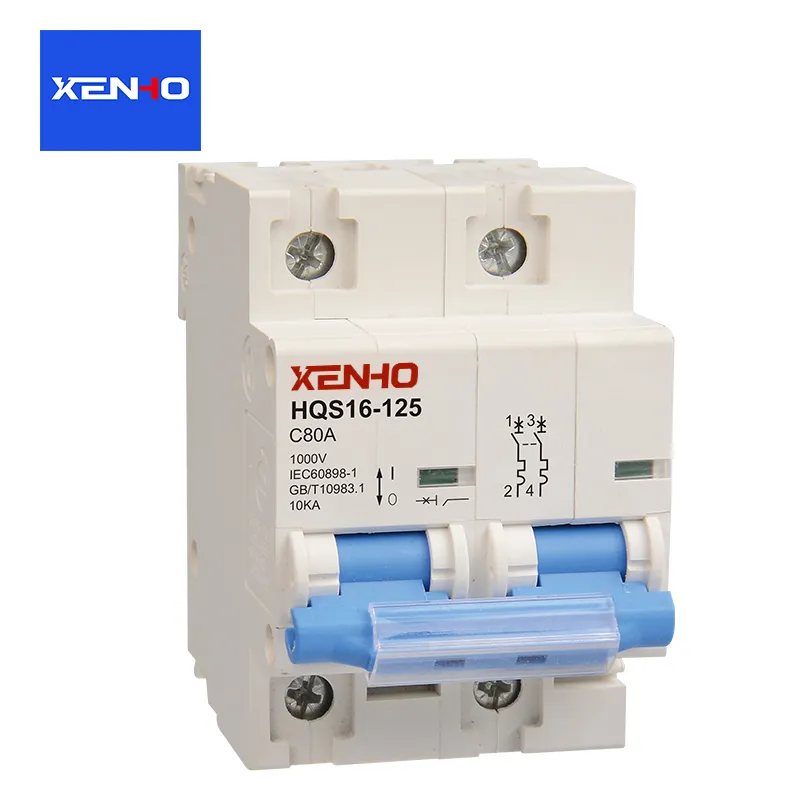

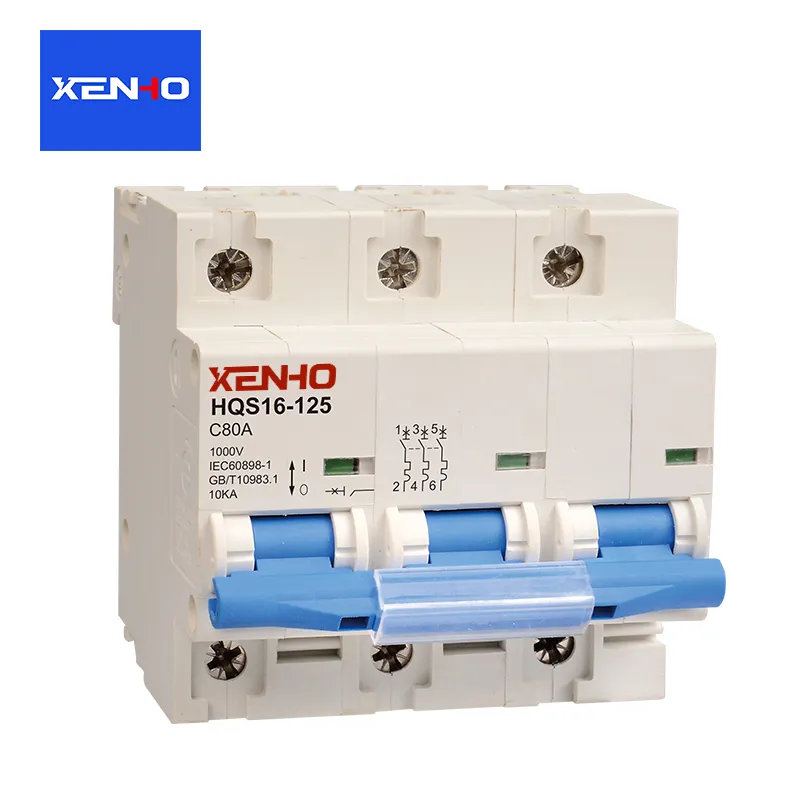

NC Circuit Breaker
As the professional manufacturer in China, XENHO would like to provide you high quality NC Circuit Breaker, which is a safety protection device designed to remain in an open (disconnected) state under no-current or power-loss conditions. It only closes automatically when the power supply is stable and no fault is detected.
What is an NC Circuit Breaker?
XENHO factory’s customized NC Circuit Breaker is a protective device designed to remain in an open (disconnected) state under normal no-current or power-loss conditions; it automatically closes only upon detecting that stable power supply to the line has been restored and that no faults are present. This design effectively mitigates safety hazards associated with sudden power restoration, making it particularly suitable for remote-controlled systems, unmanned power stations, and industrial environments with exceptionally stringent safety requirements, thereby ensuring a controllable and reliable system restart process.
Key Advantages
1. High-Sensitivity Electromagnetic Trigger
High-sensitivity electromagnetic mechanism can ensure microsecond-level response times during overloads and short circuits, effectively isolating faults before they escalate into fires or cascading equipment failures.
2. Integrated Multi-Layer Protection
Over-voltage & Over-current Protection: Safeguards sensitive electronics from power surges.
Short-Circuit Protection: Interrupts fault currents up to 85kA.
Leakage Protection: Detects residual currents to prevent electric shock.
Built-in Self-Diagnosis: An internal module continuously monitors device health. If an internal fault is detected, it actively cuts off the output and triggers an alarm, supporting remote fault uploading to monitoring platforms for immediate IT or maintenance intervention.
3. Good Durablity
With an IP67 protection rating and an operating temperature range of -25°C to +85°C, this breaker is built for the harshest industrial environments.
Applications
The NC Circuit Breaker is widely used in:
Unattended power stations
Remote-controlled electrical systems
Industrial automation lines
Renewable energy systems (solar/wind)
Critical infrastructure requiring safe restart control
Product Specifications
|
Product Name |
NC Circuit Breaker |
|
Rated Operating Current |
0.5A, 7A, 10A, 25A, 63A |
|
Certificates |
CB，CE，RoHS |
|
Rated Operating Voltage (Ue) |
250V, 400V, 690V /65V, 125V |
|
Number of Poles |
1P, 2P, 3P, 4P |
|
Breaking Capacity |
2.5kA, 6kA, 85kA |
|
Mechanical Life |
>100000 |
|
Rated Frequency |
50/60 Hz |
|
Mounting Method |
DIN rail mounting, panel mounting, etc. |
|
Ambient Temperature |
-10°C to +50°C |
|
Warranty |
12–24 months |
|
Samples Available |
Available |
|
Processing Method |
OEM, ODM |
|
Production Lead Time |
30–45 days |
|
Ordering Method |
Purchase of finished products or components |
|
Technical Support |
Yes, we provide full technical support |
|
Features |
Easy to assemble |
|
Control Method |
Digital, Electromagnetic |
Comparison with Traditional Circuit Breakers
|
Feature |
NC Circuit Breaker |
Traditional Circuit Breaker |
|
Default State |
Open (safer) |
Closed |
|
Power Recovery |
Controlled closing |
Immediate energization |
|
Safety Level |
High |
Medium |
|
Remote Monitoring |
Supported |
Limited |
|
Application Scenario |
Critical systems |
General use |

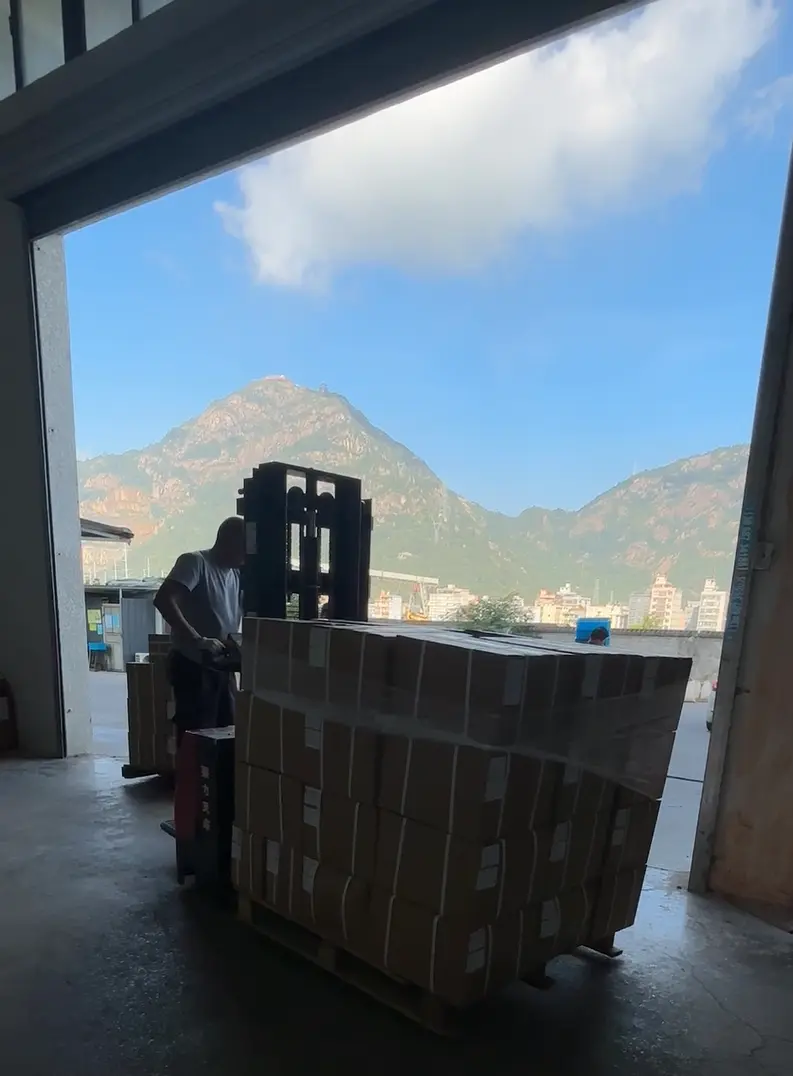

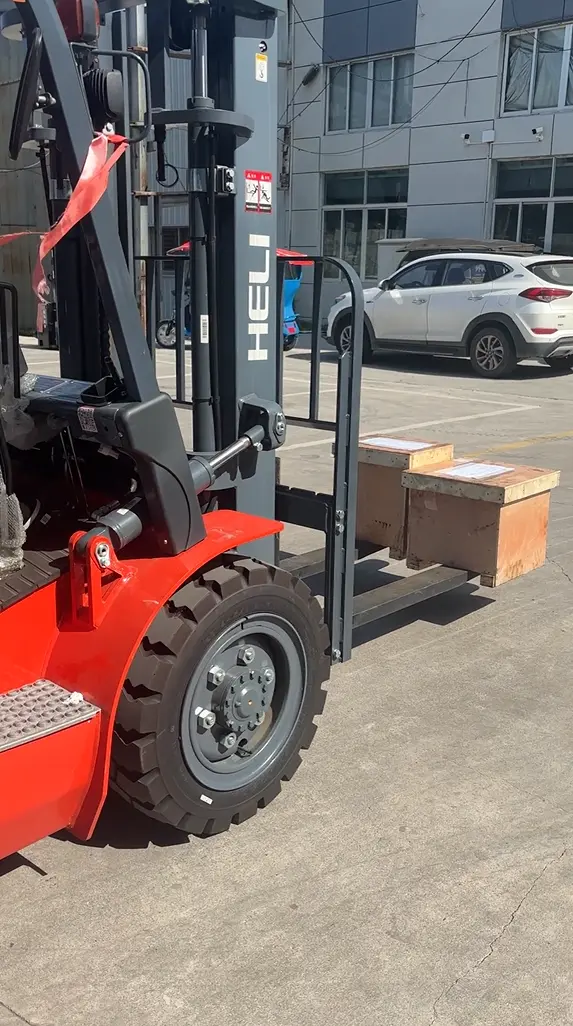

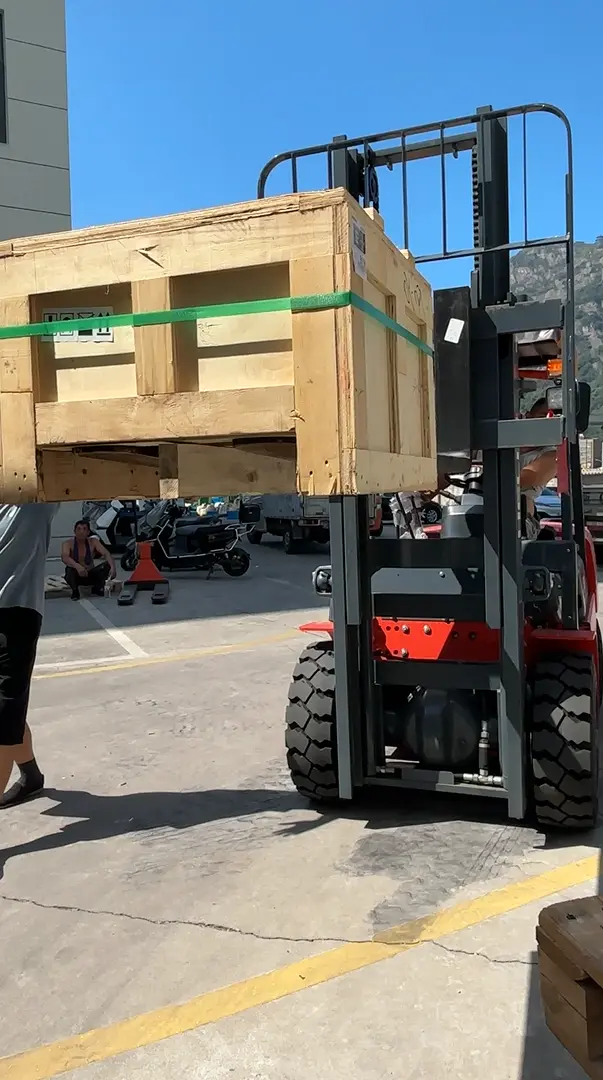

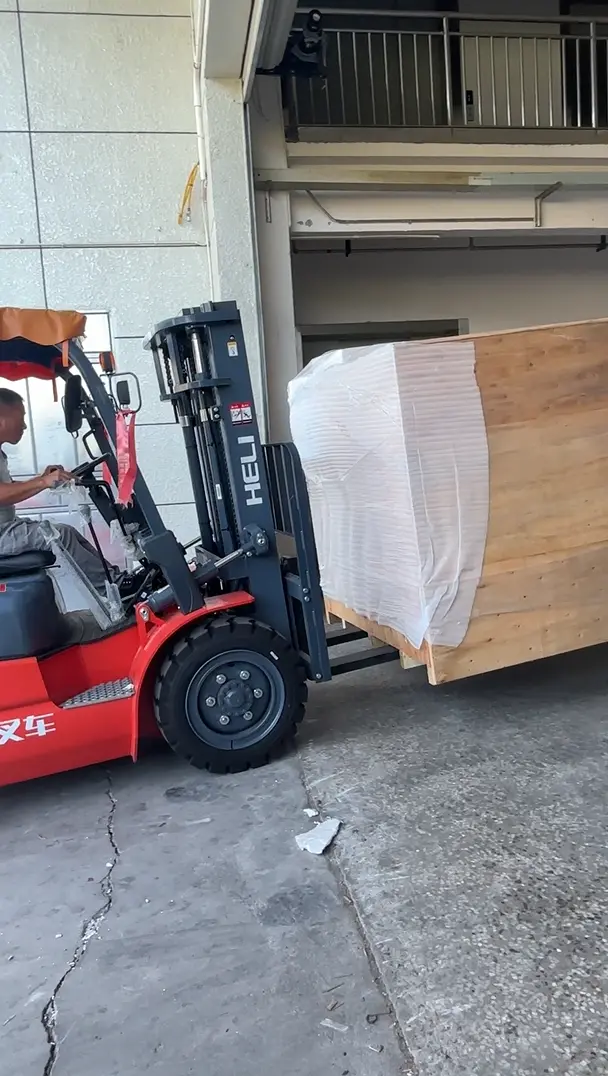

Packaging & Shipping
We utilize integrated, industrial-grade packaging for our NC Circuit Breakers, designed to provide both anti-static and shock-resistant protection. The outer carton features printed product identification and ingress protection (IP) ratings, and contains internal desiccant packets and humidity indicator cards to ensure a stable environment during transit. All accessories are individually packaged and accompanied by a checklist label to facilitate easy verification upon receipt.
