What Makes DC L7 Miniature Circuit Breaker a Reliable Choice for Modern Electrical Protection?

DC electrical systems are becoming increasingly important in solar power, energy storage, electric vehicles, communication equipment, and industrial automation. However, protecting these systems from overloads, short circuits, and unexpected electrical failures remains a major challenge. The DC L7 Miniature Circuit Breaker provides a compact, efficient, and dependable protection solution designed specifically for direct current applications. This article explains its working principles, key advantages, application scenarios, installation considerations, and how it helps businesses build safer and more stable electrical systems.

Table of Contents

• 1. Understanding the DC L7 Miniature Circuit Breaker
• 2. Why DC Circuit Protection Matters in Modern Applications
• 3. Key Features That Improve Electrical Safety
• 4. Common Applications of DC L7 Miniature Circuit Breaker
• 5. DC L7 Miniature Circuit Breaker vs Traditional Protection Devices
• 6. How to Select the Right DC L7 Miniature Circuit Breaker
• 7. Installation and Maintenance Guidelines
• 8. Frequently Asked Questions
• 9. Building Safer DC Power Systems with Holy Flame Group

1. Understanding the DC L7 Miniature Circuit Breaker

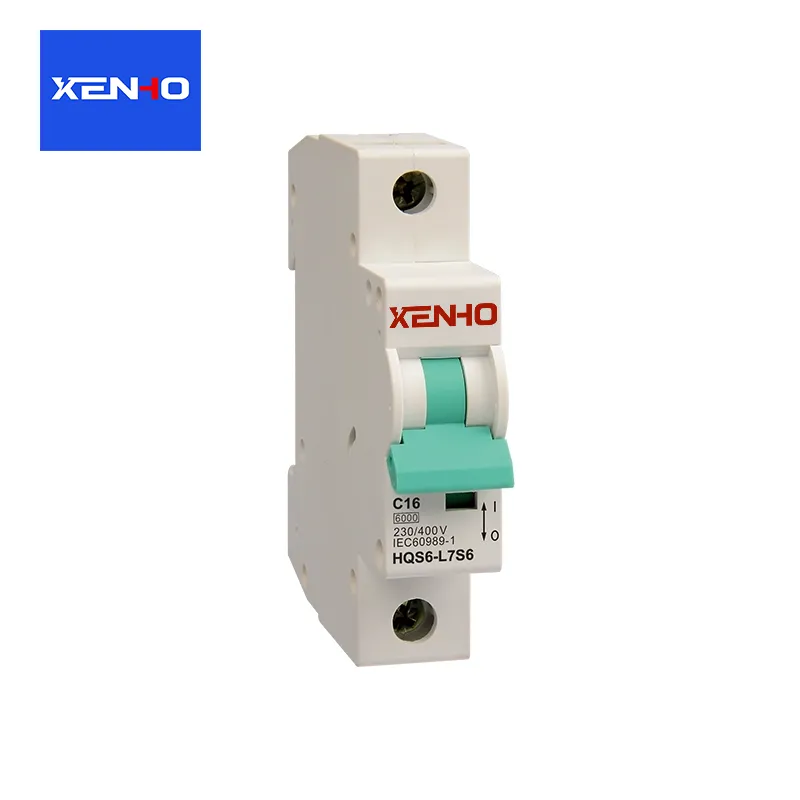

The DC L7 Miniature Circuit Breaker is a specialized electrical protection device designed for direct current circuits. Unlike AC circuit breakers, DC breakers must handle continuous current flow without natural zero-crossing points, making arc extinguishing technology especially important.

With a compact modular structure and reliable protection performance, the DC L7 Miniature Circuit Breaker is commonly used in low-voltage DC systems where safety, space efficiency, and operational stability are critical. It helps disconnect abnormal circuits quickly when overload or short-circuit conditions occur, preventing equipment damage and reducing potential safety risks.

Modern electrical systems require components that provide both protection and convenience. The DC L7 Miniature Circuit Breaker meets these demands by combining fast response capability, durable construction, and easy installation.

2. Why DC Circuit Protection Matters in Modern Applications

The increasing adoption of renewable energy and smart electrical technologies has created a growing demand for reliable DC protection solutions. Solar panels, battery storage systems, and industrial control equipment all depend on stable DC power transmission.

Without proper protection, excessive current can cause overheating, component failure, or even serious electrical hazards. A high-quality DC L7 Miniature Circuit Breaker provides an effective safety barrier between electrical equipment and unexpected current problems.

3. Key Features That Improve Electrical Safety

A reliable circuit breaker should not only interrupt faults but also maintain stable performance under demanding conditions. The DC L7 Miniature Circuit Breaker offers several advantages that make it suitable for professional electrical applications.

Compact Modular Design

Space limitations are common in electrical cabinets and distribution systems. The compact design of the DC L7 Miniature Circuit Breaker allows efficient installation while saving valuable panel space.

Reliable DC Arc Control

DC current creates continuous electrical arcs during interruption. Advanced arc extinguishing structures help control and eliminate arcs quickly, improving operational safety.

High Mechanical Durability

Industrial environments require components that can withstand frequent operation. The DC L7 Miniature Circuit Breaker is designed for long service life and stable switching performance.

Easy Installation

• Standard modular installation structure
• Simple connection process
• Convenient replacement and maintenance
• Suitable for different electrical cabinets

4. Common Applications of DC L7 Miniature Circuit Breaker

The DC L7 Miniature Circuit Breaker is widely used across industries where direct current protection is required.

5. DC L7 Miniature Circuit Breaker vs Traditional Protection Devices

6. How to Select the Right DC L7 Miniature Circuit Breaker

Choosing the correct circuit breaker requires careful consideration of system requirements. The wrong specification may reduce protection effectiveness or affect equipment performance.

• Rated Voltage: Ensure the breaker matches the DC system voltage.
• Rated Current: Select a current rating suitable for the connected load.
• Breaking Capacity: Choose sufficient short-circuit interruption capability.
• Installation Environment: Consider temperature, humidity, and operating conditions.
• Application Type: Match the breaker with solar, storage, industrial, or communication systems.

7. Installation and Maintenance Guidelines

Proper installation ensures that the DC L7 Miniature Circuit Breaker performs effectively throughout its service life.

1. Confirm electrical parameters before installation.
2. Install the breaker according to professional wiring standards.
3. Check terminal connections to avoid loose contacts.
4. Perform regular inspections for abnormal heating or damage.
5. Replace damaged components immediately when necessary.

8. Frequently Asked Questions

Q1: What is the main purpose of a DC L7 Miniature Circuit Breaker?

A DC L7 Miniature Circuit Breaker protects direct current electrical systems from overloads and short circuits by automatically disconnecting abnormal circuits.

Q2: Can a normal AC circuit breaker be used in DC systems?

Generally, AC breakers are not recommended for DC applications because DC current behaves differently and requires specialized arc interruption technology.

Q3: Where is the DC L7 Miniature Circuit Breaker commonly installed?

It is commonly used in solar power systems, battery storage systems, industrial control panels, communication equipment, and other DC applications.

Q4: How can the service life of a DC circuit breaker be improved?

Proper selection, correct installation, regular inspection, and operation within rated parameters can significantly improve service life.

9. Building Safer DC Power Systems with Holy Flame Group

As DC applications continue expanding worldwide, reliable protection components have become essential for maintaining electrical safety and system efficiency. The DC L7 Miniature Circuit Breaker provides a practical solution for businesses seeking dependable circuit protection, compact installation, and long-term performance.

Holy Flame Group focuses on delivering high-quality electrical protection products designed to support modern power systems. With professional manufacturing capabilities and strong attention to product reliability, Holy Flame Group helps customers create safer and more efficient electrical solutions.

For reliable DC protection solutions and customized electrical product support, please contact us today. Holy Flame Group is ready to provide professional assistance for your power system requirements.
