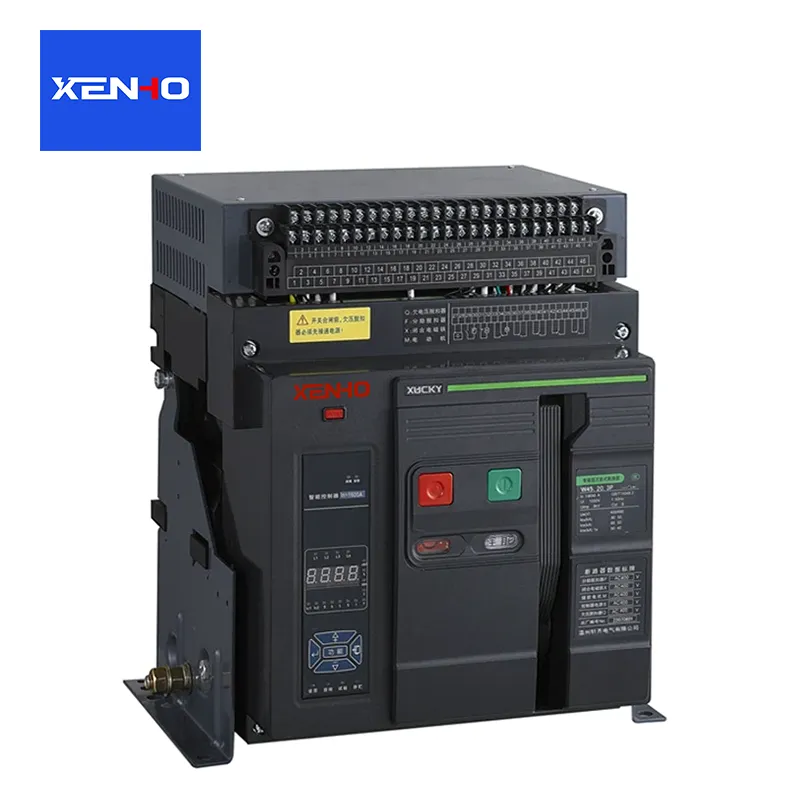

DW45 Air Circuit Breaker

XENHO is an international professional manufacturer for high-end electrical solutions. DW45 Air Circuit Breaker provides superior breaking, stable protection and intelligent control. It adopts modular design, long life, strong adaptability to high temperature, humidity and EMI, compliant with IEC and global certifications.

The DW45 Air Circuit Breaker is a high-voltage electrical device developed and manufactured by the XENHO brand. It is designed to make and break circuits under both normal and fault conditions, while providing protection against overloads, short circuits, undervoltage, and other anomalies for the circuit and associated electrical equipment. Serving as a core protective device within power distribution systems, it utilizes a built-in intelligent trip unit to monitor circuit parameters such as current and voltage. In the event of a circuit anomaly, it can rapidly open its main contacts to interrupt the fault current, thereby effectively preventing electrical fires, equipment damage, and electric shock accidents, and ensuring the safe and stable operation of the power distribution system.

Customization / Manufacturing Process

Based on specific customer application requirements, the DW45 circuit breaker supports personalized configurations for rated current, breaking capacity, and communication protocols.

Manufacturing Process

Production employs high-precision CNC punching and vacuum welding technologies to ensure the precise assembly of the contact system and arc-extinguishing chamber. The housing is formed via high-temperature SMC molding, endowing it with flame-retardant and anti-aging properties. Core electronic modules are encapsulated within a Class 100,000 cleanroom environment and undergo rigorous EMC anti-interference testing as well as high/low-temperature cycling verification to guarantee long-term operational reliability. Prior to shipment, all finished products undergo full-load operational testing and random sampling for insulation performance verification; the entire manufacturing process strictly adheres to the requirements of the ISO 9001 Quality Management System.

Core Advantages & Key Selling Points

1. Ultra-High Breaking Capacity: Utilizing a new generation of "zero-arc-flash" arc-extinguishing technology, the device achieves a breaking capacity of up to 100kA (RMS). It can rapidly extinguish fault arcs and effectively interrupt short-circuit currents, serving as the primary safety barrier for the power distribution system.

2. Intelligent & Precise Protection: The DW45 Air Circuit Breaker is equipped with XENHO's proprietary 6th-generation intelligent trip unit. It features three-stage overcurrent protection (instantaneous, short-time delay, and long-time delay) as well as undervoltage protection functions. With a current measurement accuracy of ±1% and a protection response time of ≤20ms, it allows for flexible configuration of protection parameters to suit various load characteristics.

3. Ultra-Long Service Life (DW45 Air Circuit Breaker): Boasting a mechanical life of up to 30,000 cycles and an electrical life (at rated operating current) of 10,000 cycles, the contacts are constructed from a silver-tungsten alloy. This material offers exceptional wear resistance and resistance to contact welding, thereby significantly reducing the frequency of maintenance and replacement.

4. Good Environmental Adaptability: With an enclosure protection rating of IP40, the device operates stably within an ambient temperature range of -25°C to +70°C, at a relative humidity of ≤95% (non-condensing), and at altitudes below 2,000 meters. It is capable of withstanding strong electromagnetic interference (compliant with IEC 61000-6-2 standards), making it well-suited for harsh industrial environments.

Product Specifications

Loading and Shipping:

We utilize standardized export-grade wooden crates, each lined with shock-absorbing and moisture-proof film to ensure safety during long-distance transit. We support multimodal transport—including sea, air, and rail—and provide comprehensive end-to-end services covering customs clearance and commercial inspection. Prior to delivery, each order undergoes a thorough performance re-inspection; the shipment is accompanied by a factory inspection report, a product certificate of conformity, and an installation and operation manual.
