C45 MCB Accessories

Choose XENHO for field repair, spare parts stocking and OEM assembly. Purchase XENHO C45 MCB Accessories with confidence, knowing each component meets IEC 60898-1 standards and holds CE and CCC certifications.

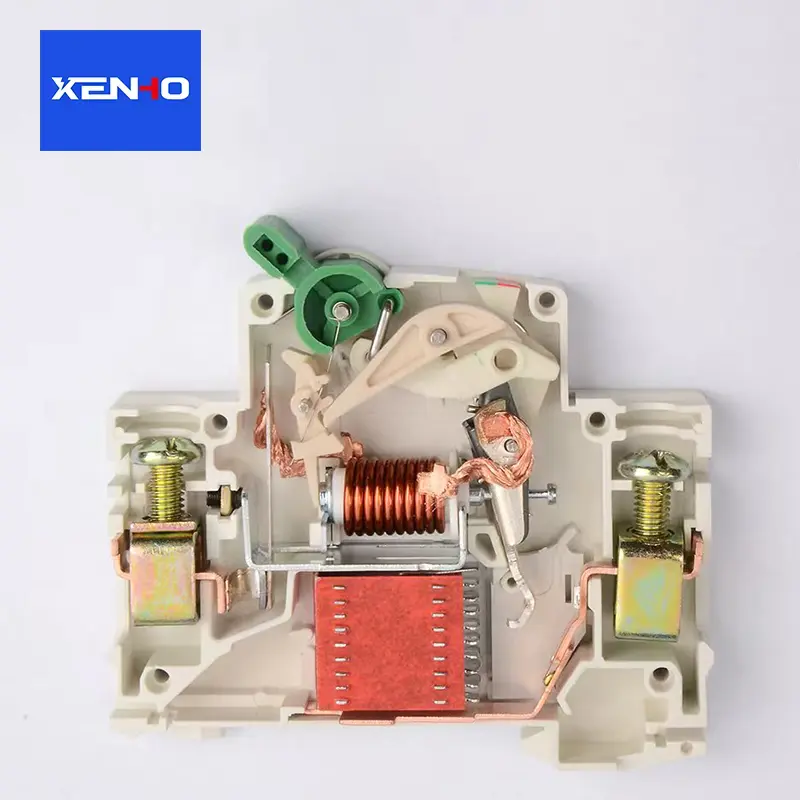

Core Components:

1. Electromagnetic Coil: Wound with copper insulated wire, rated for 4.5kA or 6kA interruption. Under fault current, magnetic force drives the plunger to strike the latch, cutting off power within 0.01 seconds. Suitable for B-curve (3-5x current), C-curve (5-10x current) or D-curve (10-20x current).

2. Moving Contact: Silver-alloy tip resists arc damage. The arm uses beryllium copper or phosphor bronze for balanced flexibility and strength. Designed for 15,000 switching operations.

3. Bimetal Element: Nickel-iron-chrome alloy. When overload occurs, heat causes deflection to trigger the latch after a controlled delay. Performance meets IEC inverse-time curve. Different rated currents (1A-63A) require different specifications. Do not mix.

4. Arc Chamber: Stacked galvanized steel plates. Splits, stretches and cools the arc for rapid extinction.

5. Stationary Contact: Silver-alloy contact surface paired with moving contact. The base is copper or brass. Curved or flat tip design minimizes resistance.

6. Terminal: Tunnel-type design, brass or copper with tin/nickel plating. Accepts 25mm² wire, tightening torque 2.5Nm.

7. Trip Mechanism: Stamped steel parts and springs. Provides quick-close operation and free-trip function – contacts open forcibly regardless of handle position during fault.

8. Casing & Base: PA66 plastic with UL94 V-0 flame rating. Operates from -30℃ to +70℃. Features red/green indicator window showing contact status.

Specifications:

Fits C45 series 1P/2P/3P/4P, 1A to 63A.

Breaking capacity: 4.5kA or 6kA. Insulation voltage: 500V.

Impulse withstand voltage: 4kV.

Operating temperature: -30℃ to +70℃.

Flammability rating: UL94 V-0.

Certifications: CE, CCC. Meets IEC 60898-1.

Typical Uses:

Breaker overhaul, after-sales spare parts, panel builder stock, old distribution box upgrades.

Key Reminders:

Check breaker type, amp rating, pole count and trip curve before ordering. Do not mix different ratings. Only qualified electricians should install replacements after disconnecting power. Bimetal and coil ratings must match the original unit. Arc plates must face the correct direction. Bulk buyers can request material certificates and batch codes.
