L7S6 MCB Accessories

As a professional manufacturer of circuit breaker accessories in China, XENHO L7S6 MCB Accessories feature high interchangeability and complete compatibility. Compliant with the IEC 60898-1 standard and holding CE and CCC certifications, these accessories are suitable for circuit breaker repair and replacement, aftermarket spare parts, and OEM assembly.

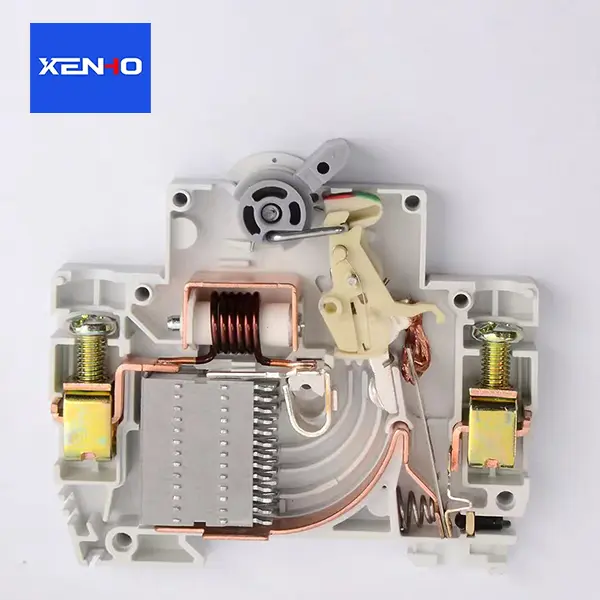

Core Accessories Introduction:

Moving Contact: Works with stationary contact to open and close the circuit. Silver alloy contact offers arc erosion resistance and anti-welding performance. Contact arm made of beryllium copper or phosphor bronze with good elasticity, mechanical life over 20,000 cycles.

Electromagnetic Coil: Used for short-circuit protection, wound with high-purity copper enameled wire with rust-proof iron core. During short circuit, it generates a strong magnetic field to pull the armature, opening within 0.01 seconds. 6kA breaking rating, suitable for C-curve (5-10 times rated current).

Bimetal Strip: Used for overload protection, made of nickel-chromium-iron alloy. When overloaded, it bends due to heat to push the trip mechanism for time-delayed trip, accuracy complies with IEC 60898-1 inverse time characteristic. Different rated currents require different specifications. Do not mix.

Arc Chamber: Multiple parallel plates of galvanized steel or stainless steel installed around the contacts. Splits, stretches and cools the arc for rapid extinction.

Stationary Contact: Fixed in the base, silver alloy contact, paired with moving contact. Contact holder made of copper or brass.

Terminal: Tunnel-type design, brass or copper with tin or nickel plating. Accepts 25mm² wire, tightening torque 2.5Nm.

Operating Mechanism: Stamped metal parts and springs, featuring quick-close and free trip functions.

Housing & Base: PA66 engineering plastic, UL94 V-0 flame retardant, operating from -30℃ to +70℃.

Technical Specifications:

Compatible with L7S6 series 1P/2P/3P/4P, 1A-63A. Breaking capacity 6kA, insulation voltage 500V, impulse withstand voltage 4kV, operating temperature -30℃ to +70℃, UL94 V-0 flame retardant. Compliant with IEC 60898-1, certified with CE and CCC.

Applications:

Breaker repair, after-sales spare parts, OEM assembly.

Important Notes:

Confirm model, current, poles and characteristic before selection. Replacement must be performed by professional electricians with power disconnected. Bimetal strip and coil specifications must match original product. Ensure correct arc chamber orientation. Different specifications are not interchangeable.
