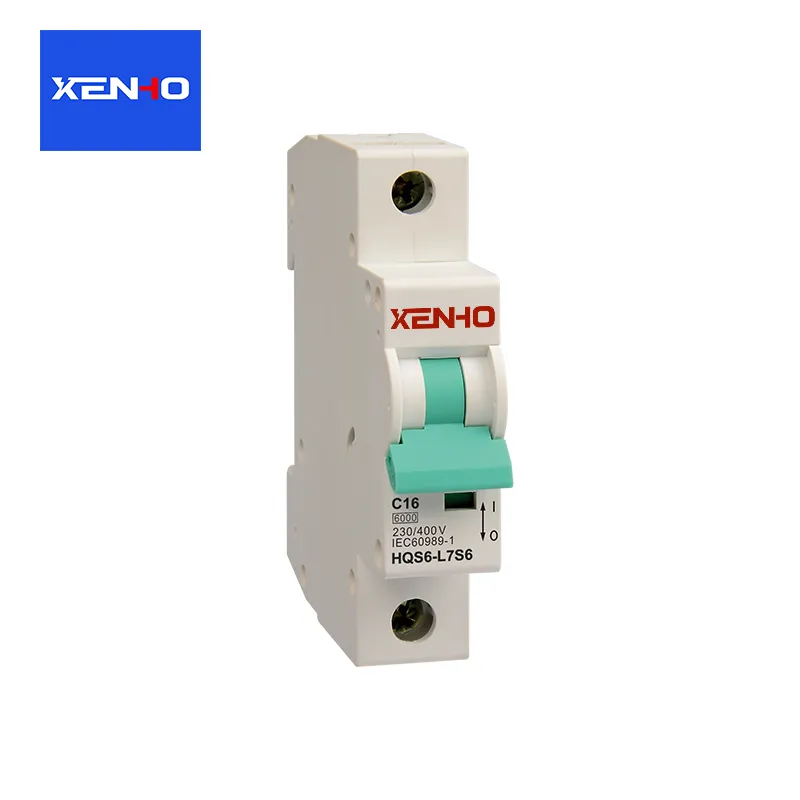

6KA Miniature Circuit Breaker
As a professional Miniature Circuit Breaker manufacturer in China, XENHO's 6KA Miniature Circuit Breaker features a collaborative design combining thermal and magnetic tripping. Constructed with flame-retardant engineering plastics and a silver alloy contact system, it maintains stable performance even under frequent operation and high-temperature environments.
The 6KA Miniature Circuit Breaker launched by the XENHO factory is a low-voltage distribution protection device targeting the global market. It supports a current range of 6–63A and provides dual protection mechanisms against overload and short circuits. Through the use of stable material selection and standardized production processes, XENHO ensures the safety and consistency of the product across various application scenarios, making it suitable for residential, industrial, and commercial power distribution systems. OEM and customization services are supported to meet diverse procurement needs.
What is 6KA Miniature Circuit Breaker?
A mechanical switching device capable of making, carrying, and breaking normal circuit currents automatically or manually, and automatically breaking fault currents (such as during overloads or short circuits) under specified conditions. It operates via coil and bimetal mechanisms, responding to excessive magnetic force and high temperature, respectively.
Protection Mechanisms:
The 6KA Miniature Circuit Breaker is designed based on a dual protection mechanism:
Overload Protection (Thermal Tripping): Overload protection is achieved through the bending of a bimetallic strip when heated. When the current exceeds the rated value for an extended period, heat accumulation in the bimetal causes deformation, triggering the tripping mechanism.
Short Circuit Protection (Magnetic Tripping): Short circuit protection relies on an electromagnetic coil that instantly generates a strong magnetic field, propelling the core to act quickly and interrupt the circuit. The synergy of these two mechanisms ensures reliable disconnection under different fault conditions, safeguarding electrical safety.
Materials
The 6KA Miniature Circuit Breaker utilizes high-strength, flame-retardant engineering plastics. These materials offer excellent heat resistance, insulation properties, and impact resistance. They resist deformation or combustion under high temperatures or arcing conditions, effectively enhancing the breaker's safety and service life.
The housing material has passed international standard flame-retardant certifications, ensuring stable operation in extreme environments and providing solid protection for electrical systems.
The contact system employs silver alloy materials, which are resistant to arc erosion, ensuring stable conductive performance during frequent operations.。
Product Specifications:
|
Product Name |
6KA Miniature Circuit Breaker |
|
Pole |
1P, 1P+N, 2P, 3P, 3P+N, 4P |
|
Structure Type |
L7 |
|
Amp |
6A、10A、16A、20A、25A、32A、40A、50A、63A |
|
Rated Voltage (V) |
230V、400V |
|
Ambient Temperature |
-5°C~+40°C |
|
Frequency |
50/60Hz |
|
Warranty |
12-24 months |
|
Breaking Capacity |
4.5KA、6KA、10KA |
|
Tripping Characteristics |
B、C、D |
|
Plastic Material |
PA6、PA66 |
|
Trip Type |
Thermal Trip, Magnetic Trip |
|
Samples Available |
Available |
|
Processing Method |
OEM, ODM |
|
Production Lead Time |
30–45 Days |
|
Ordering Method |
Purchase of Finished Products, Purchase of Components |
|
Technical Support |
Yes, we provide full technical support |
|
Features |
Easy to Assemble |

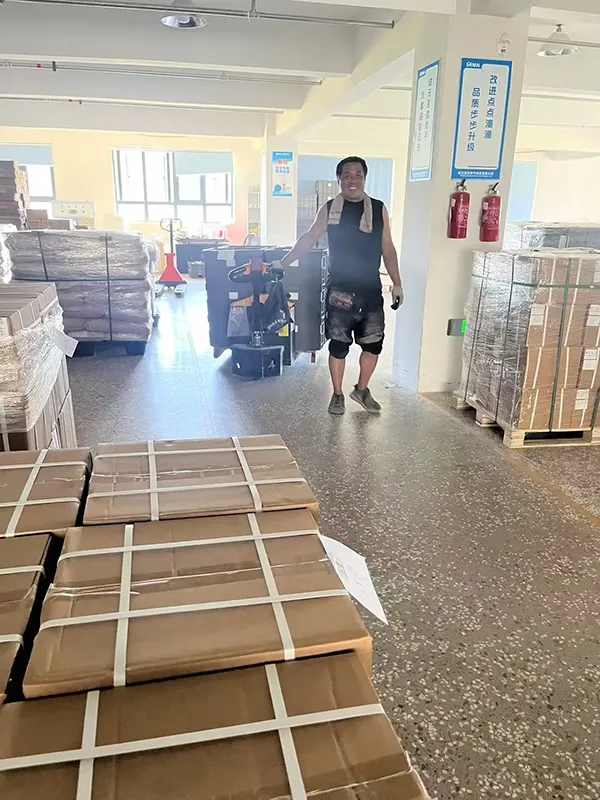

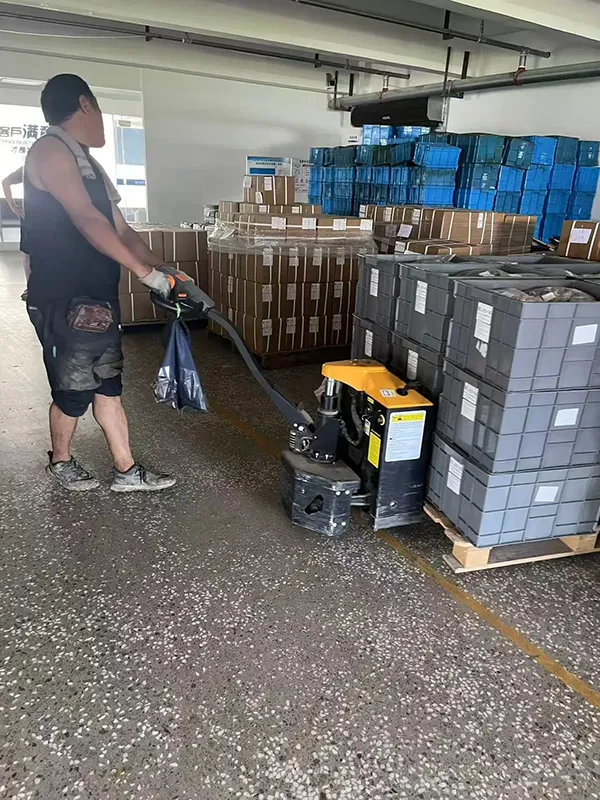

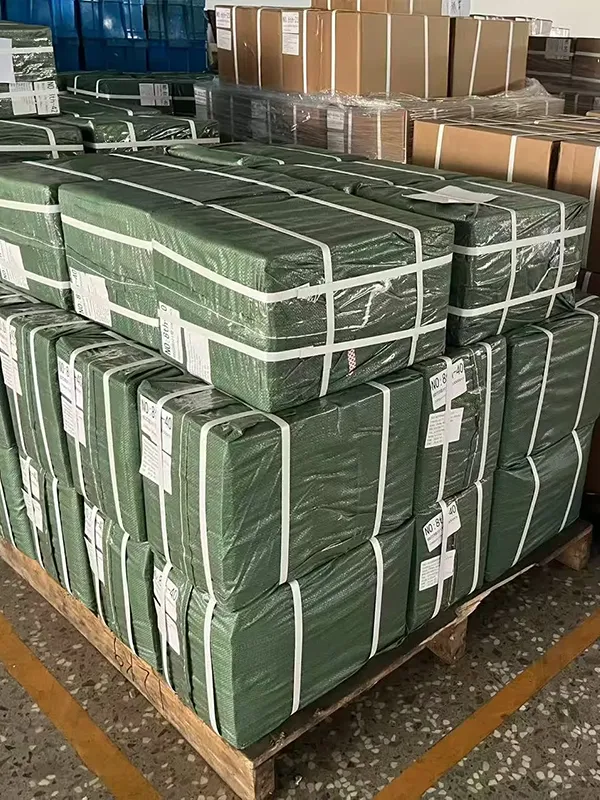

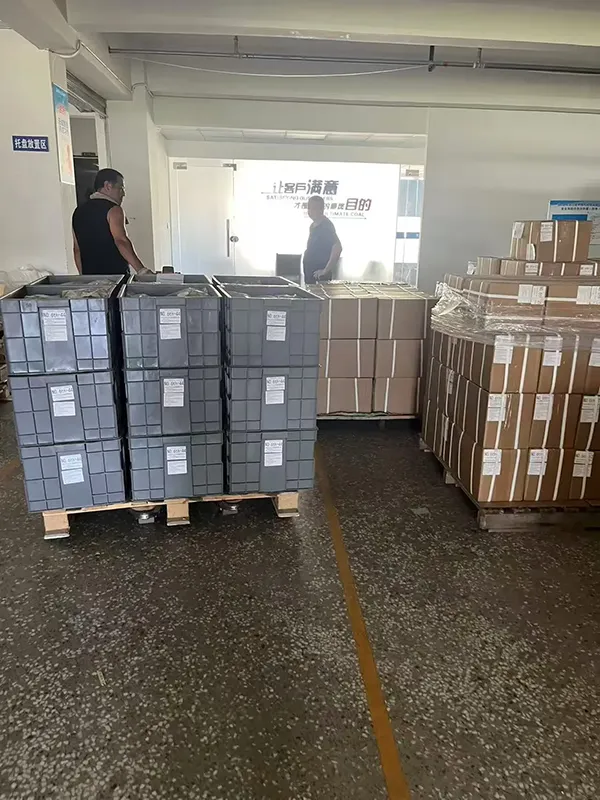

Loading and Shipping
Leveraging our consistent product quality, we have established close and long-term business partnerships with clients from over 30 countries, receiving abundant positive feedback regarding our quality.
Contact us
For any inquiries about our products, please feel free to contact us through the following methods:
WhatsApp / WeChat: 86-13123865875 86-15858812131
Email: 799199031@qq.com
