DC C65 Miniature Circuit Breaker

Why Choose XENHO's DC C65 Miniature Circuit Breaker?

With years of experience in production DC C65 Miniature Circuit Breaker, XENHO can supply a wide range of durable Miniature Circuit Breaker. Our products are based on the mature and huge C65 technology ecosystem, which not only provides double protection against overload and short circuit, but also keeps improving on materials and processes. We understand the importance of stable, safe circuit protection to your project, so we are committed to providing a one-stop shop from standard to exclusive custom service, to ensure that every circuit breaker value for money.

Core Benefits:

1. Uses a C65 structure.

XENHO high quality DC C65 Miniature Circuit Breaker adopts the most mainstream and ecologically sound C65 structure in the China market. This means that it is extremely mature technology, wide compatibility, easy maintenance. You can choose models with integrated leakage protection without the need for additional accessories, saving you time and money.

2. High quality materials and robust construction

The robust PA66 and tough PA6 engineering plastic in the housing ensure stable operation in harsh environments from-30℃ to +70℃.

For internal conductive stamping parts, we accord to the current level of scientific proportion, such as iron parts to ensure structural strength, brass parts provide excellent elasticity and conductivity. In the large current model, we are more at the cost of using copper conductivity performance is almost the ultimate, only to ensure the lowest resistance and the highest security.

3. High security

Our DC C65 Miniature Circuit Breaker is equipped with dual thermal/magnetic trip protection:

Overload protection (thermal trip): Built-in precision bimetallic strip. When the circuit is overloaded for a long time, the heat will make the double gold bend trigger disconnection, effectively protect the equipment from damage. We have different sizes of double gold from 6A to 63A to ensure accurate protection for every ampere.

Short-circuit protection (magnetic trip): It built-in solenoid. In the event of a sudden, large short-circuit current, the coil produces a powerful magnetic field that causes the drive mechanism to cut the circuit quickly (milliseconds) to prevent catastrophic damage. Coil specifications also match with the current level, sensitive and reliable response.

Product Parameter

Product Component Materials and Advantages

Plastic materials: PA6 and PA66.PA6 has better toughness and elasticity, and has high cost performance.PA66 has higher heat resistance and strength, and ultimate mechanical properties.

Stamping material: Iron, brass, copper.

Iron parts in the circuit breaker to play a conductive and high strength, hardness characteristics, and the price is the lowest;

Brass parts in the circuit breaker has better conductivity than iron, and has better elasticity, belongs to a relatively balanced material;

Copper is the highest copper content of the metal, close to 100%, only in the high current DC C65 Miniature Circuit Breaker will be used, and each product will have iron, brass, copper material.It can also be customized to upgrade brass to copper.

Wire material: braided wire and brush wire.

Why Choose XENHO?

1. Complete specifications: offer a full range of pole numbers from 1P to 4P, current from 6 A to 63A, breaking capacity from 4.5 KA to 10KA, tripping characteristics of C and D types are optional, which can meet different scenarios for home, commercial and industrial use.

2. Customization is supported: You can select standard end items or purchase parts. We even support material upgrades, such as customizing brass parts for critical areas to copper parts for the ultimate in conductivity.

3. Rapid response: Production cycle time is only 30-45 days and sample support allows you to verify quality before purchasing.

4. Full Support: We provide any technical support you need to back up your project.

Our products comply with GB 14048.2, GB 10963 and other national standards, each batch of products have been strictly tested (as shown in Figure 3 professional breaking capacity test curve). Over the years, we have exported high quality DC C65 Miniature Circuit Breakers to more than 30 countries around the world.

Product Detail

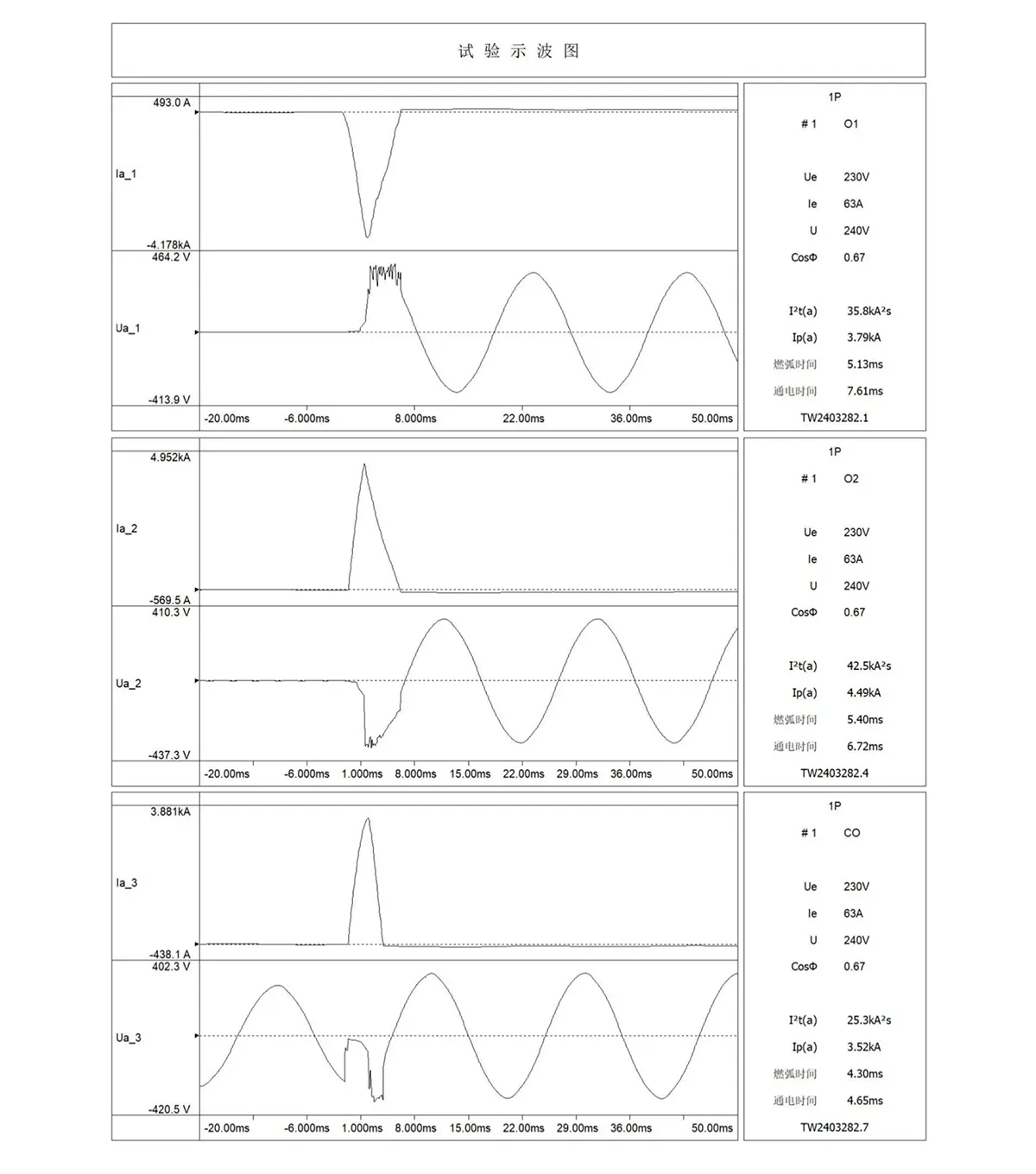

Product segment test curve graph

Loading and Shipping

Thanks to our exceptional quality, we have established close and long-term business partnerships with customers from over 30 countries and have received much positive feedback regarding our quality.
