DC C45 Miniature Circuit Breaker
As a professional low-voltage electrical appliance manufacturer in China, XENHO's DC C45 Miniature Circuit Breakers are designed to provide overload and short-circuit protection for DC circuits, with rated currents ranging from 6A to 63A and breaking capacity up to 10KA. Core components are manufactured entirely in-house, and key current-carrying parts can be customized in either copper or iron to meet different cost and performance requirements.
The XENHHO Factory’s DC C45 Miniature Circuit Breaker is a high-performance electrical device designed to protect DC circuits against damage caused by overloads and short circuits. Its compact design and high breaking capacity make it widely applicable across various fields, including industrial control, rail transit, new energy storage, and solar power generation systems.
Product Features:
1. International Safety Certification: Compliant with international safety standards, the device possesses the capability to rapidly interrupt current flow in the event of a fault, thereby effectively safeguarding both equipment and personnel.
2. Rapid-Response Protection: Equipped with a highly sensitive fault-response mechanism, DC C45 Miniature Circuit Breaker activates instantly the moment a circuit anomaly occurs, thereby minimizing the risks of electrical fires and equipment damage.
3. Modular Design for Easy Installation: Featuring a modular structural design, it supports quick rail mounting and removal, significantly enhancing installation efficiency and facilitating future maintenance.
4. Flexible Multi-Pole Configuration: Supports multi-pole configurations ranging from 1P to 4P, allowing for flexible adaptation to various voltage levels (230V to 400V) and diverse current requirements (6A to 63A).
Product Specifications
|
Product Name |
DC C45 Miniature Circuit Breaker |
|
Pole |
1P, 1P+N, 2P, 3P, 3P+N, 4P |
|
Structure Type |
C45 |
|
Amp |
6A、10A、16A、20A、25A、32A、40A、50A、63A |
|
Rated Voltage (V) |
230V、400V |
|
Ambient Temperature |
-5°C~+40°C |
|
Frequency |
50/60Hz |
|
Warranty |
12-24 months |
|
Breaking Capacity |
4.5KA、6KA、10KA |
|
Tripping Characteristics |
B、C、D |
|
Plastic Material |
PA6、PA66 |
|
Tripping Type |
Thermal Trip, Magnetic Trip |
|
Samples Available |
Available |
|
Processing Method |
OEM, ODM |
|
Production Lead Time |
30–45 Days |
|
Ordering Method |
Purchase of Finished Products, Purchase of Components |
|
Technical Support |
Yes, we provide full technical support |
|
Features |
Easy to Assemble |
Quality Assurance

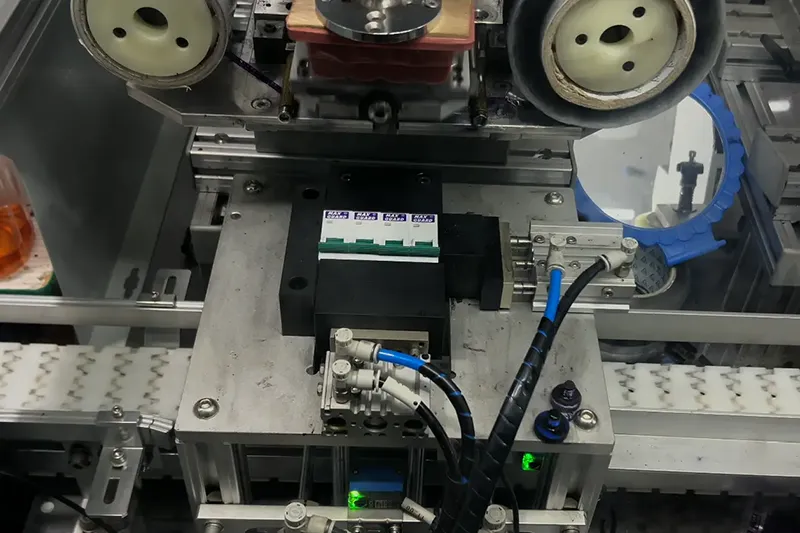

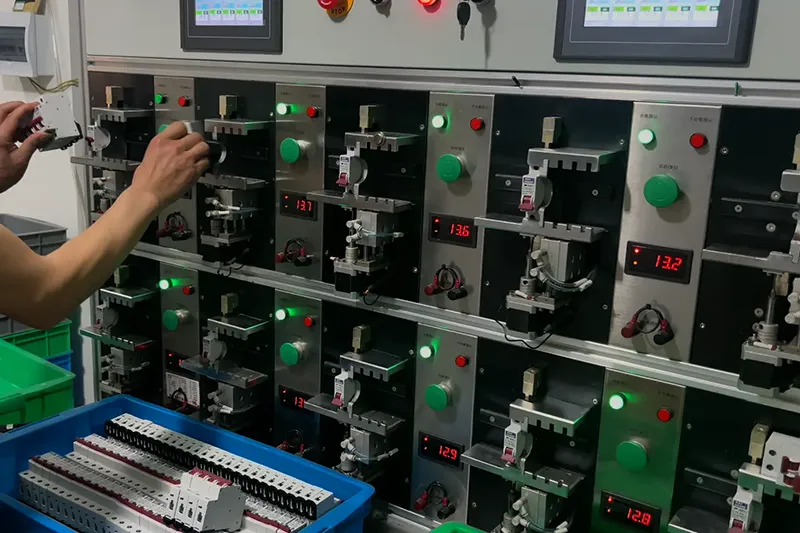

Every single product undergoes inspection by trained professionals. Furthermore, each inspection involves a multi-stage process—specifically designed to ensure that every product delivered to our customers is 100% compliant. We also utilize a fully automated production line.
Why Choose XENHO?
1. Independent Control over Core Components: From metal stamping and spot welding to final assembly, XENHO manages the entire production process in-house. This eliminates the need for external subcontracting, ensuring the consistency and stability of every product batch.
2. Flexible Configuration & Material Selection: Key current-carrying components offer customizable material options. You can opt for a pure copper solution to enhance conductivity and heat dissipation—meeting the rigorous demands of high-load applications—or choose an iron-based solution to manage procurement costs, making it ideal for budget-sensitive projects. We offer a range of cost-performance combinations built upon a single product architecture.
3. Responsive Customization Capabilities: In-house component manufacturing means we are not constrained by external suppliers' standard inventory. Whether you require specific current ratings, unique tripping curves, or non-standard packaging, we can rapidly adjust our production lines to fulfill your specific purchase orders.
4. Proven Long-Term Quality: Backed by years of experience in electrical manufacturing, our products are exported to over 30 countries. Our stable, self-managed supply chain guarantees reliable delivery lead times and consistent quality for all bulk orders.
FAQ
Q: Is the DC C45 Miniature Circuit Breaker suitable for solar power generation systems?
A: Yes, this circuit breaker features excellent DC breaking capacity and is widely utilized in solar photovoltaic (PV) systems to effectively ensure circuit safety.
Q: Do you offer OEM services?
A: Yes, XENHO supports customized manufacturing; we can adapt branding and specifications to meet specific client requirements.
Q: What is the product warranty period?
A: We provide a quality guarantee of up to 18 months for the DC C45, ensuring complete peace of mind for our customers.
Q: How do you ensure product stability in high-temperature environments?
A: The DC C45 utilizes heat-resistant insulating materials and a precision arc-extinguishing design, allowing it to operate stably in temperatures ranging from -35°C to +70°C and adapt to various harsh operating conditions.
