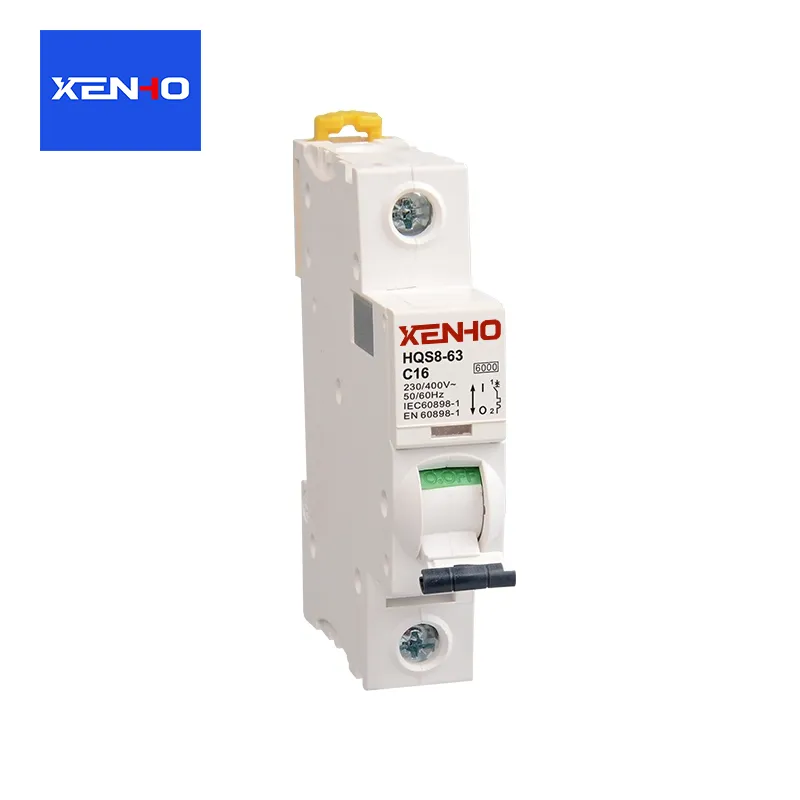

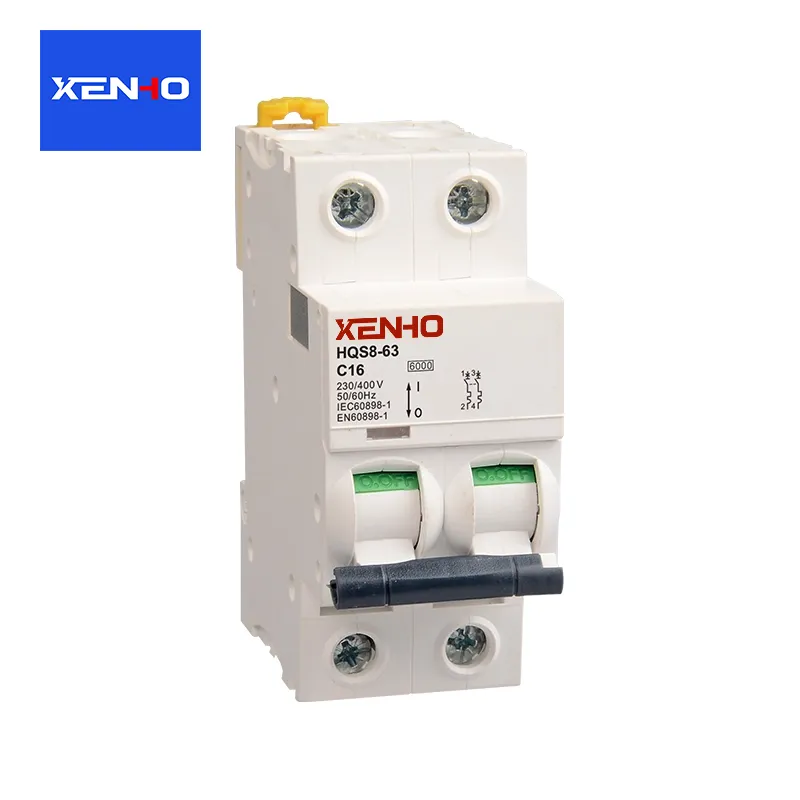

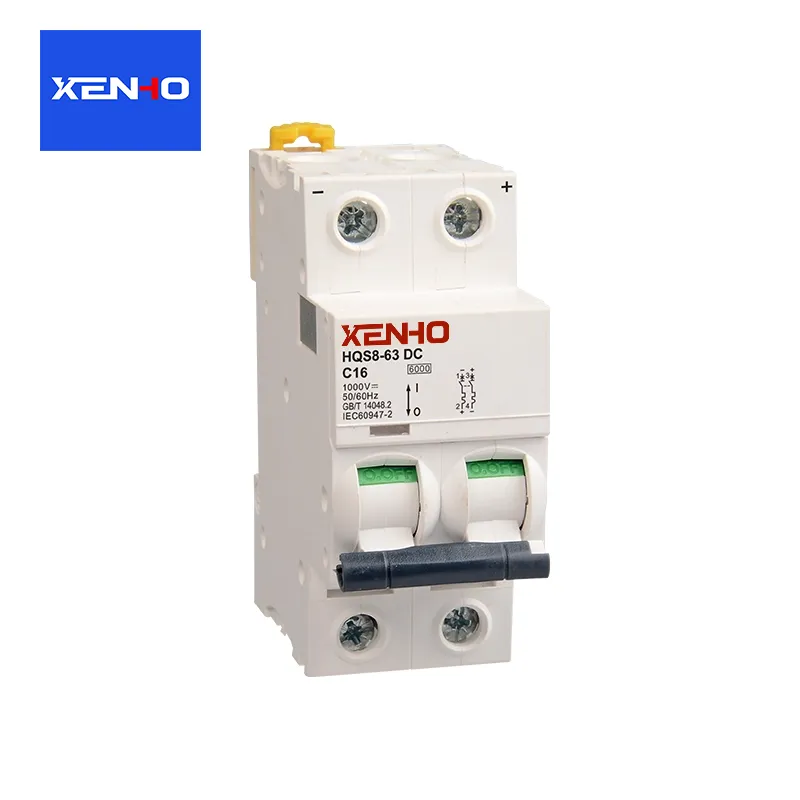

DC DZ47 Miniature Circuit Breaker

XENHO Electric factory’s durable DC DZ47 Miniature Circuit Breaker is mainly used in low voltage power distribution system, which plays the role of overload protection and short circuit protection for circuits and electrical equipment. Commonly used in AC 50 Hz or 60 Hz, rated voltage 230V or 400V lines. It is used in residential buildings, laboratories, industries, power distribution boxes and photovoltaics.

Product parameter

Application scenario

DZ47 type circuit breaker, with large, sound ecology and more mature technology, can meet more different needs. For example, DZ47 circuit breakers with leakage protection function, while other circuit breakers may require additional leakage accessories.

Assembly precautions

If it is a large Amp circuit breaker, separate the two wires on both sides of the thick shaft on the moving contact.

Packaging protection level description

The product packaging adopts high-strength corrugated paper box, and the interior is equipped with customized foam mold, which can form an all-round buffer fixation for the main body and accessories of the high quality DC DZ47 Miniature Circuit Breaker, effectively preventing the vibration and extrusion caused by the transportation process.

Clear product model, specification parameters, quantity, production batch number and warning signs are printed on the outside of the package for easy storage management and rapid identification.

The protection level meets the IP20 standard, which can effectively block the intrusion of solid foreign matters with a diameter greater than 12. 5mm. At the same time, it has certain dustproof ability to ensure the safety of the product when stored and transported in the unopened state.

Logistics anomaly handling mechanism

If there is packaging damage, water or product missing during transportation, the consignee should take photos as soon as possible to keep evidence, and contact our customer service for feedback within 24 hours. We promise to respond within 2 hours after receiving the notice and provide solutions such as replacement, exchange or compensation according to the actual situation.

All DC DZ47 Miniature Circuit Breakers are insured against freight insurance to ensure that customers 'rights and interests are not damaged. Adhere to the principle of "customer first" and guard the trust of each delivery with efficiency and responsibility.

Product structure diagram

The internal structure of the DZ47 is shown in the figure. DZ47 type is more complicated than other series products, we do not recommend customers who do not have technical accumulation to buy DZ47 as parts, we recommend buying finished products directly. DC DZ47 Miniature Circuit Breaker is a mature DZ47 model that can be equipped with more module requirements, such as adding leakage protection.

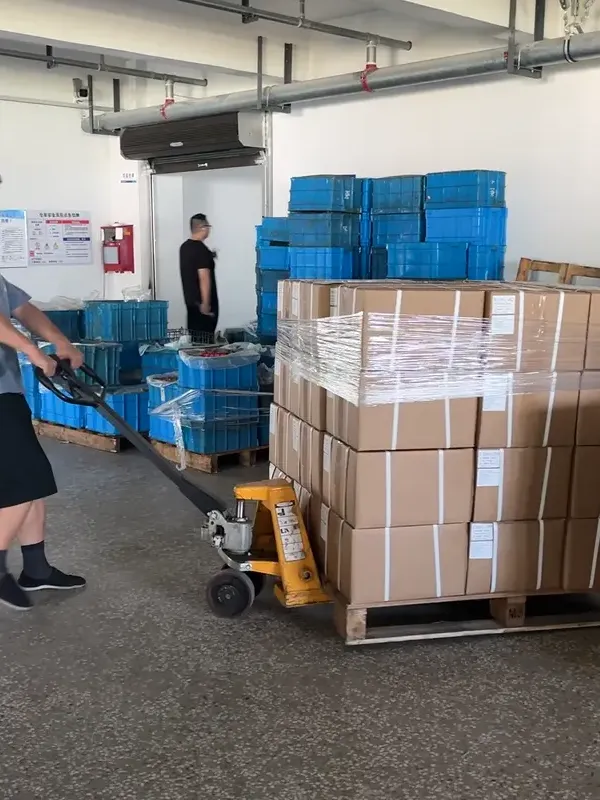

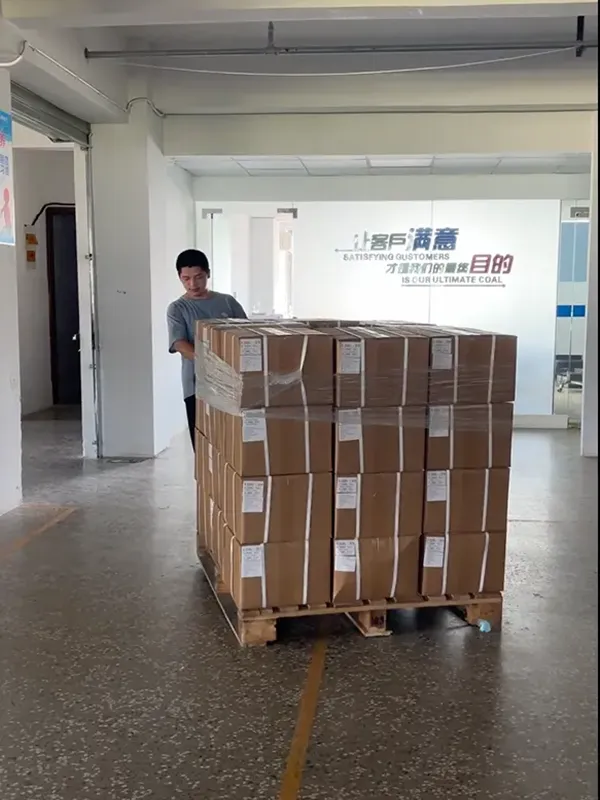

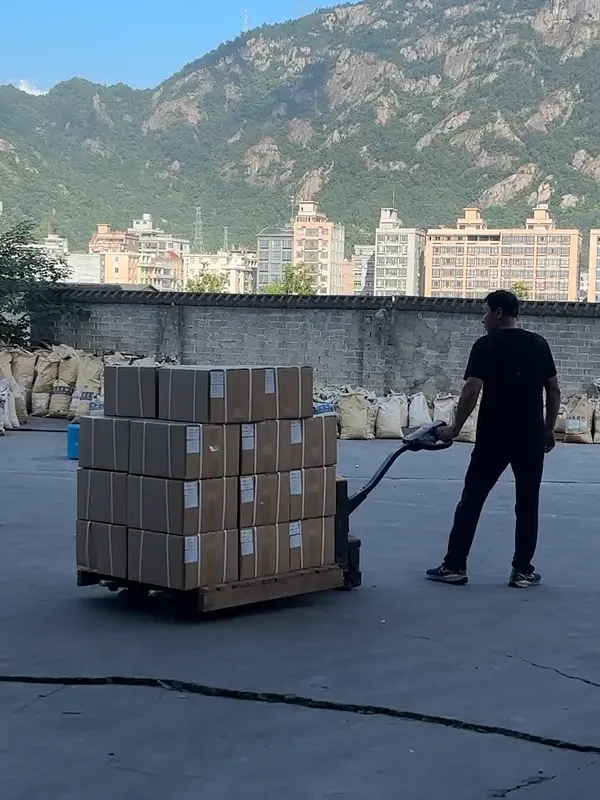

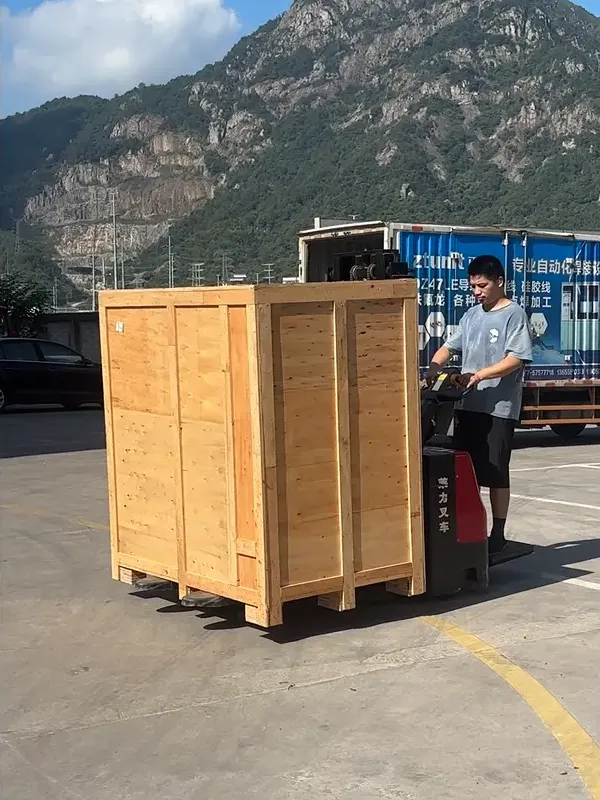

Loading and Shipping

With excellent product quality, we have established solid and long-term cooperative relationships with customers from more than 30 countries. Over the years, we have continuously optimized our products and services, won unanimous praise and trust from customers, and continue to provide reliable and high-quality solutions for customers around the world.
